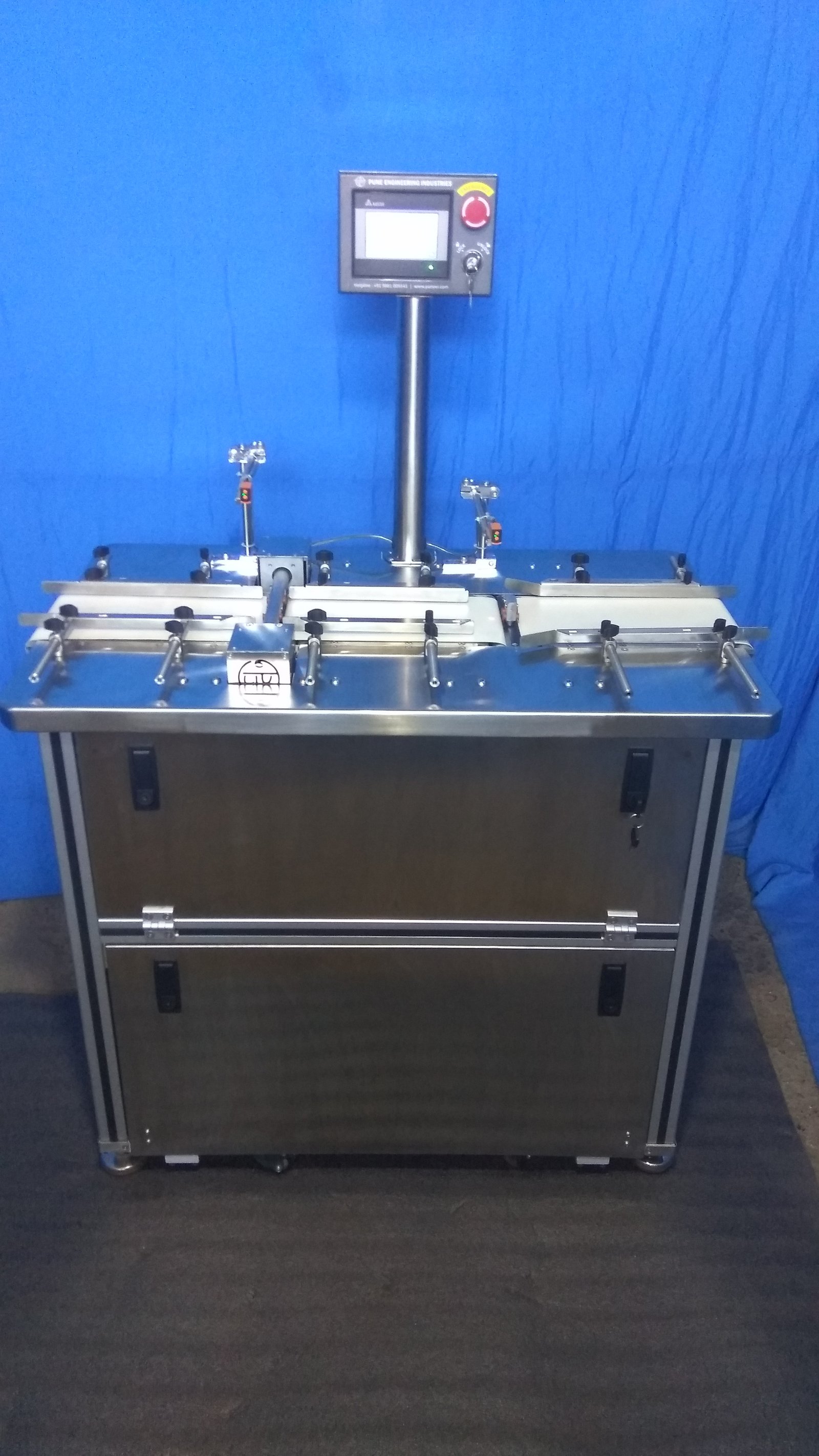

Carton Reversing & Turning Machine

This machine used to reverse the carton position as well as turn the carton along with respective centers/axis of carton. Usually this is used for set over printing conveyor. PEI-CARTON REVERSING & TURNING MACHINE can also be availed in customized sizes according to the specifications of the clients.

Reversing of Carton

Reversing of carton is rotating the carton around “Z” axis for 180 deg. This will bring the surface which is at bottom to top after rotation.


Turning of Carton

Turning of carton is rotating the carton around “x” axis for 180 deg.

  • Fully automatic operation
  • Rigid Structure
  • PLC Controlled
  • Product Contact Parts - Stainless Steel 304
  • Compact in design
  • Smooth in Operation
  • Easy to maintenance
  • Encasing Speed - 80 to 100 cartons per minute
  • Machine Dimension - 1373mm x 900mm x 1800mm
  • Machine Weight - 250 kg
  • 0.25HP Panasonic make geared motor for conveyor
  • Electric accessories : - PLC ,HMI, VFD & Servo of DELTA
