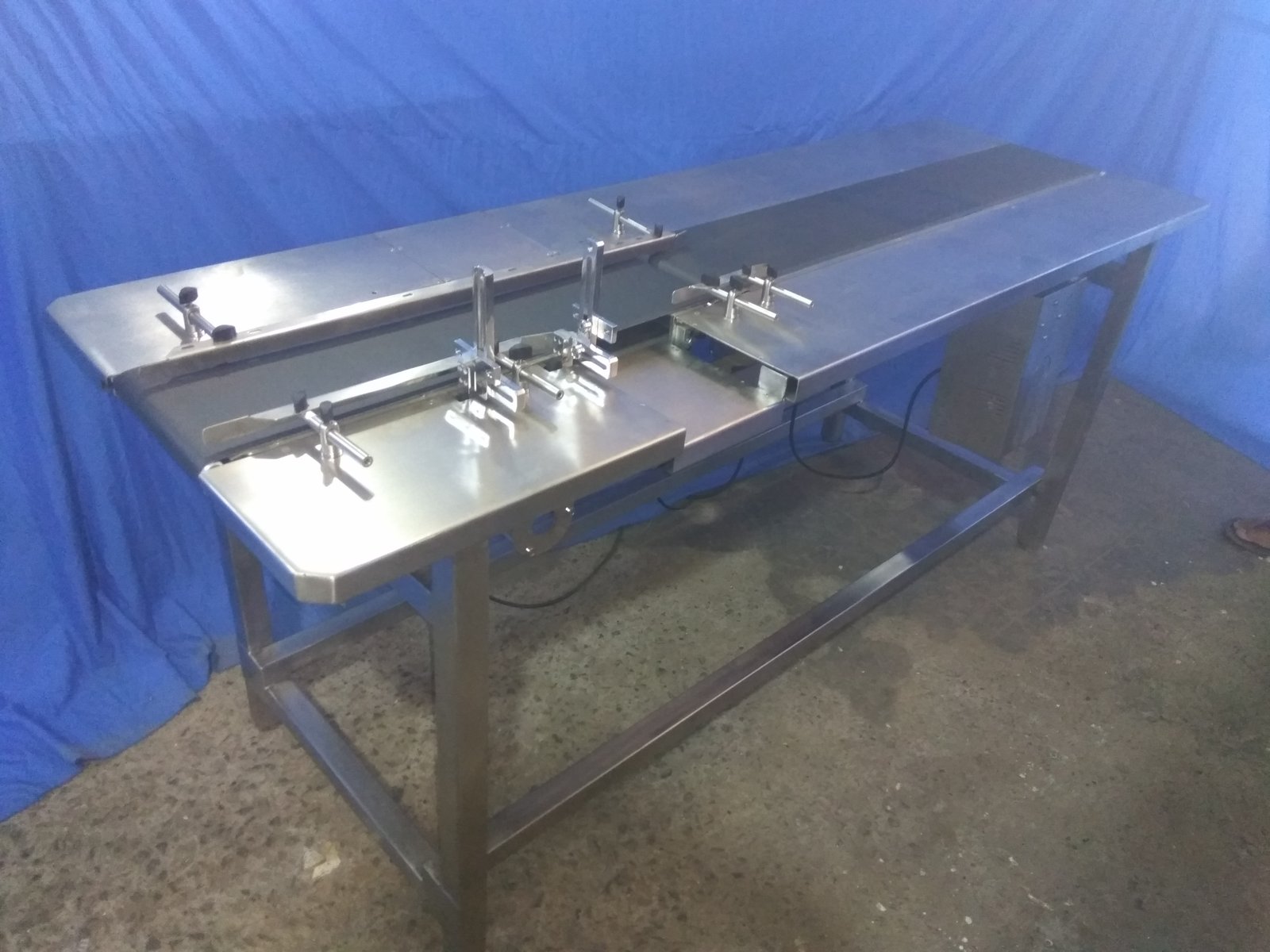

Table Type Conveyor

TABLE TYPE CONVEYOR used for assembly and inspection purpose. This conveyor used for conveying the product (mono-carton) from one machine to another and whatever program set it will print on carton. Belt of this conveyor is PVC. Videojet printing gun has X-Y slide we can adjust as per required, we can change front and rear position of machine.
PEI- Table Type Conveyor can also be available in customized sizes according to the specifications of the clients.

  • Encasing Speed - up to 10 meter per minute
  • Machine Dimension - 1830 mm x 620mm x 850mm
  • Machine Weight - 180 kg (approx.)
  • Bonfiglioli make geared motor for conveyor
  • Electric accessories - VFD of DELTA
  • Lead screw type jack support for easy height adjustment
  • Surface Finish - Polish to matt finish
  • Rigid Structure
  • Product Contact Parts - Stainless Steel 304
  • Compact in design
  • Smooth in Operation
  • Easy to maintenance
  • Power Supply - 220 VAC, 50Hz
  • Motor Power – 0.25 HP
